1976 Albin Vega vs Catalina 28 — Comparison
1976 Albin Vega

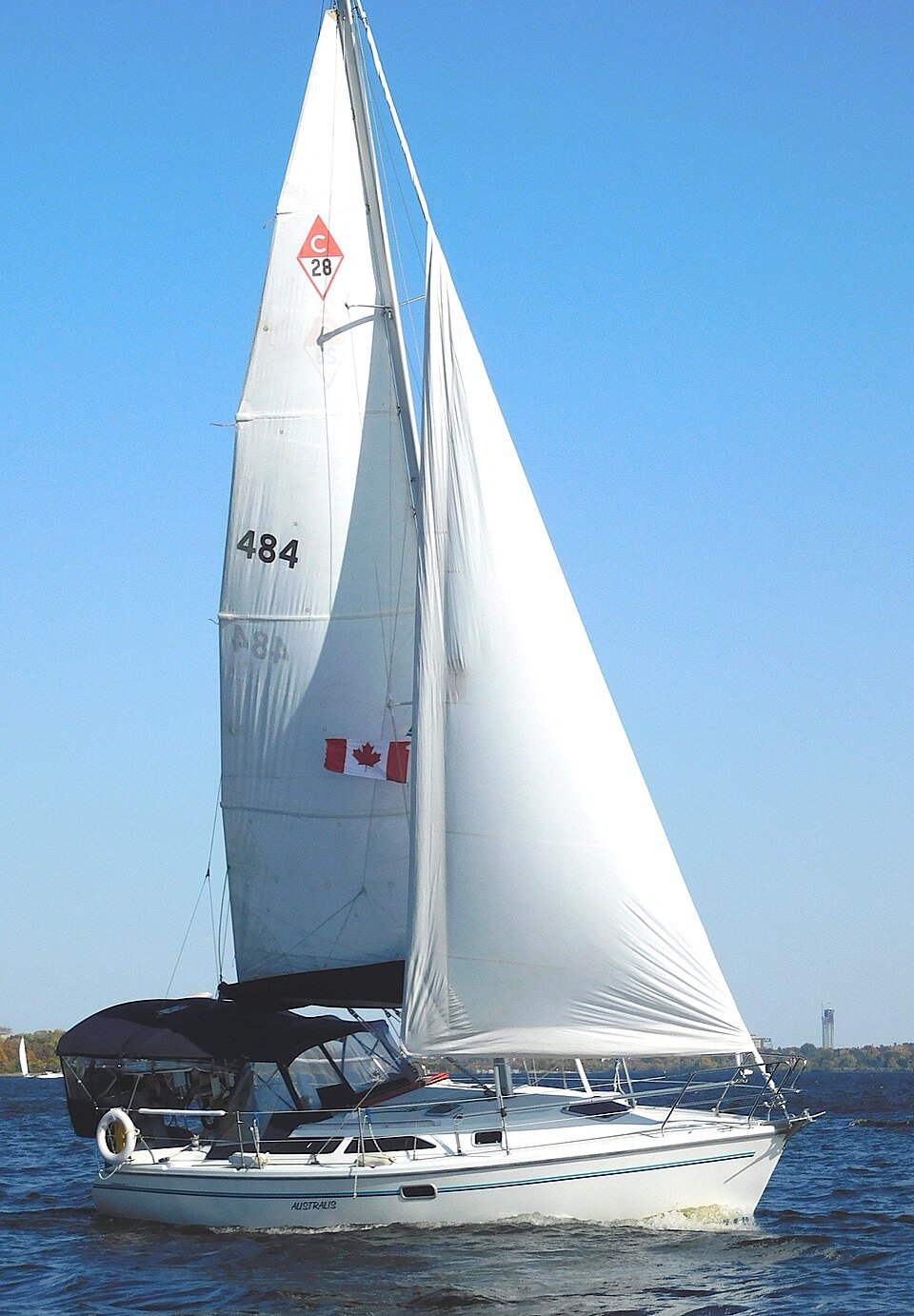

Catalina 28
Specifications Side by Side
| Specification | 1976 Albin Vega | Catalina 28 |
|---|---|---|
| General | ||
| Manufacturer | Albin | Catalina |
| Year | 1976–1982 | 1998–2004 |
| Type | Sloop | Sloop |
| Country | Sweden | USA |
| Designer | Per Brohall | Gerry Douglas |
| Dimensions | ||
| LOA | 8.24 m (27.0 ft) | 8.69 m (28.5 ft) |
| LWL | 6.27 m (20.6 ft) | 7.62 m (25.0 ft) |
| Beam | 2.46 m (8.1 ft) | 2.90 m (9.5 ft) |
| Draft | 1.15 m (3.8 ft) | 1.37 m (4.5 ft) |
| Weight | ||
| Displacement | 2,400 kg (5,291 lbs) | 2,812 kg (6,199 lbs) |
| Ballast | 1,050 kg (2,315 lbs) | 1,134 kg (2,500 lbs) |
| Sailing | ||
| Sail Area | 26.5 m² (285 ft²) | 33.5 m² (361 ft²) |
| Hull Material | Fiberglass | Fiberglass |
| Keel Type | Full | Fin |
| Engine & Tanks | ||
| Engine | 10 HP | 15 HP |
| Fuel Capacity | 40 L (10.6 gal) | 57 L (15.1 gal) |
| Water Capacity | 50 L (13.2 gal) | 95 L (25.1 gal) |
| Accommodation | ||
| Berths | 4 | 6 |
| Cabins | 1 | 1 |
Performance Comparison
Detailed Comparison
The 1976 Albin Vega and Catalina 28 represent two takes on sloop-rigged sailing. The 1976 Albin Vega is a 1970s design by Albin from Sweden, while the Catalina 28 is a 1990s offering from Catalina from USA. The 1976 Albin Vega was penned by Per Brohall. The Catalina 28 was designed by Gerry Douglas.
In terms of size, the 1976 Albin Vega measures 8.24m (27.0ft) overall with a beam of 2.46m, compared to the Catalina 28 at 8.69m (28.5ft) with a 2.90m beam. The Catalina 28 is 0.45m longer than the 1976 Albin Vega. The Catalina 28 displaces approximately 17% more than its counterpart, which significantly affects how each boat handles in different sea states.
Looking at performance, the 1976 Albin Vega has moderate sail power suitable for relaxed cruising with an SA/D ratio of 15.02 and 26.5 m² of sail area. The Catalina 28, with an SA/D of 17.09 and 33.5 m² of canvas, offers good sail power for versatile performance. The Catalina 28 has the edge in terms of raw sailing performance.
For comfort and safety, the 1976 Albin Vega offers a moderate motion comfort level (comfort ratio: 23.6) and excellent capsize resistance suitable for offshore voyaging (capsize ratio: 0.74). The Catalina 28 has a comfort ratio of 16.6 and a capsize screening value of 0.82. The ballast ratios are 43.8% for the 1976 Albin Vega and 40.3% for the Catalina 28, reflecting their respective approaches to stability.
Below deck, the 1976 Albin Vega provides 4 berths in 1 cabin with 50L of water capacity and 40L of fuel. The Catalina 28 offers 6 berths in 1 cabin with 95L water and 57L fuel capacity.
Verdict
For cruising: The 1976 Albin Vega is the better choice for comfortable cruising thanks to its higher comfort ratio, offering a gentler motion at sea that crews will appreciate on longer passages.
For racing: The Catalina 28 has the performance advantage with its superior SA/D ratio, meaning more sail power relative to its displacement for competitive sailing.
For liveaboard: The Catalina 28 offers more sleeping accommodation, making it better suited for extended living aboard. Consider water and fuel capacity for extended stays away from marinas.
